Profile Projector


 We believe that it will delightfully surprise you to see some of the latest innovations in both concept and design. We will be happy to supply this Profile Projector at your convenience. If you are looking for the best quality Profile Projector to test your product quality, then we suggest that you to go with Presto. Presto is one of the best and trusted testing instruments manufacturer of India.

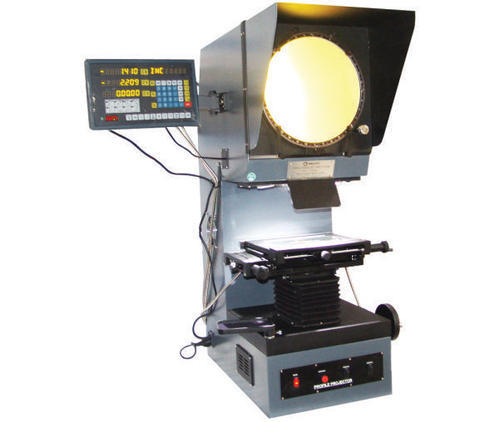

Presto’s Manufacture high-quality and the best design Digital Profile Projector to measure the micro parts, digital linear and to take the angular measurements of various Preforms. Then we suggest you go with Digital Profile Projector with DRO. We at Presto have come up with this amazing testing equipment to check the quality of the Preforms at the time of production.

It has a projection light source with a 24V / 150W Halogen Lamp. It has also embedded the double oblique light source for surface illumination in this testing instrument. It has two adjustable dichromic reflector lamps 12V/100W each. We packed the Profile Projector in two parts to ensure maximum safety during transit. The first part is the main body and the other part is the stage, which is packed separately. To install this testing instrument accurately, you need to open the two packets and remove all the packing materials along with cotton straps.

Clean all external surfaces gently, like an objective lens, glass screen & glass stage with soft tissue. The handle of this testing machine that is removed in the transportation process can be fitted by tightening the Allen screw on the flat portion of the axle. The PMD series of this testing instrument is a result of extensive research and development carried out at our innovative labs. The counter mainly consists of two or three-channel quadrature, TTL 5v, Phase Shift signal inputs used to connect linear or rotary encoders. Channel x and y are mainly used for the measurement of linear displacements ranging from +/- to +/-999.999mm. Channel c is used for the measurement of angular displacement.

If you are setting the DRO for the first time, then you need to press and hold the “inch/mm” key and simultaneously turn the DRO power on. DRO display window shall be blank. After keeping it pressed for about 3 to 4 sec after power on release the key. Now the DRO is set to default factory set modes viz: counting is set to mm, DMS (degree minutes and seconds), resolution set to 0.005mm abs, and second window set to display t axis (in case of 2 axis model rotary i.e. q axis is disabled). We set counts for all axes to absolute zero. In this way, you can easily set the DRO before performing the test.

Features of Digital Profile Projector with DRO

This testing instrument from Presto consists of various features that we have listed below:

  • Compact, lightweight Table Top model with easy operations.
  • 300mm diameter screen with 90° cross line and chart holders.
  • The screen is graduated to 360° with Vernier reading 1 minute.
  • Projection Light Source with 24V /150W Halogen Lamp.
  • Double Oblique Light Source for Surface Illumination.
  • Two adjustable dichromic reflector lamps were 12V/100W each.
  • The handwheel can adjust manually focusing.
  • High-Quality objective lenses.
  • Optical distortion below 0.15%. Standard magnifications: 10x.

Technical specifications

  • Table type & size: AL 300 x 200 mm
  • Effective table area: 275 x 180 mm
  • X-Y range: 200 x 100 mm
  • Measuring unit: Built-in linear scales
  • Resolution: 0.001 mm
  • Screen Size: 300 mm
  • View Field Diameter: 30 mm
  • Working distance: 65 mm

Give us a call at +91 9210903903 or email us at info@prestogroup.com to know about digital profile projector features and technical specification.
